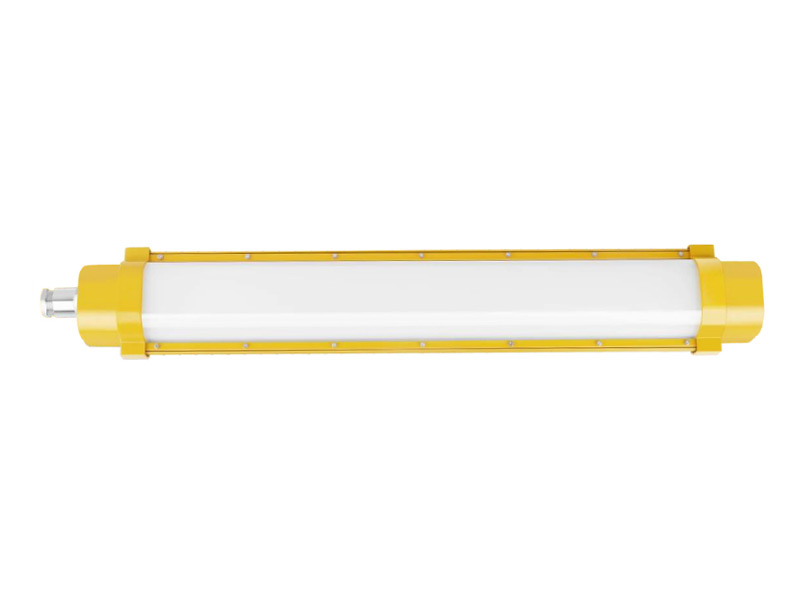

LED Explosion Proof Light EX-1
Our explosion proof light can be widely used for applications of flammable guarantee and explosive chemical materials. Bridgelux led and specially designed driver are used to guarantee safety and long lifetime.
Category：
描述
Description
LED Explosion Proof Light EX-1
Product Features:
✻20W-80W
✻Specially designed driver, 5 years warranty
✻With ATEX certificate
✻Symbol: II 2G Ex mb IIC T6 Gc / II 2D Ex tb III C T(95℃) Db
✻Application: Zone 1, Zone 2, Zone 21, Zone 22
Our explosion-proof lighting is suitable
for the following hazardous environments:
**Oil fields, oil fields ,oil refineries,offshore oil platform
**Power Plants,gas station,oil tanks,wharf,tunnel,pumping station
Performance
| Model No. | EX-1-20W | EX-1-40W | EX-1-60W | FL-1-80W | ||
| Light Efficiency | 140LM/W | 140LM/W | 140LM/W | 140LM/W | ||
| Input Voltage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | ||
| CRI | 80 | 80 | 80 | 80 | ||
| SDCM | ＜6 | ＜6 | ＜6 | ＜6 | ||
| PF | 0.95 | 0.95 | 0.95 | 0.95 | ||
| Driver | Explosion Proof Driver | Explosion Proof Driver | Explosion Proof Driver | Explosion Proof Driver | ||
| Protection | OTP, OCP, OVP, SCP | OTP, OCP, OVP, SCP | OTP, OCP, OVP, SCP | OTP, OCP, OVP, SCP | ||
| Surge Protection | 4KV | 4KV | 4KV | 4KV | ||
| THD | ≤15% | ≤15% | ≤15% | ≤15% | ||
| Impact Test | IK10 | IK10 | IK10 | IK10 | ||
| Corrosion Proof: | WF2 | WF2 | WF2 | WF2 | ||
| IP | IP65 | IP65 | IP65 | IP65 | ||
| Operating Temp Range | -25℃～+45℃ | -25℃～+45℃ | -25℃～+45℃ | -25℃～+45℃ | ||
| Lifetime | 50000H | 50000H | 50000H | 50000H | ||
